Turn Wood Waste into High-Value Compressed Wood Cable Reels
Transform waste wood and agricultural biomass into durable, lightweight and export-ready cable reels with ZK Hydraulic's advanced compression molding technology.
Eco-Friendly Cable Reel Manufacturing Solution
The Compressed Wood Cable Reel Machine developed by ZK Hydraulic converts waste wood materials into strong, lightweight, and environmentally friendly cable reels.
Finished cable reels are widely used across global logistics, telecommunication, and electrical cable export markets.
What Is A Compressed Wood Cable Reel?

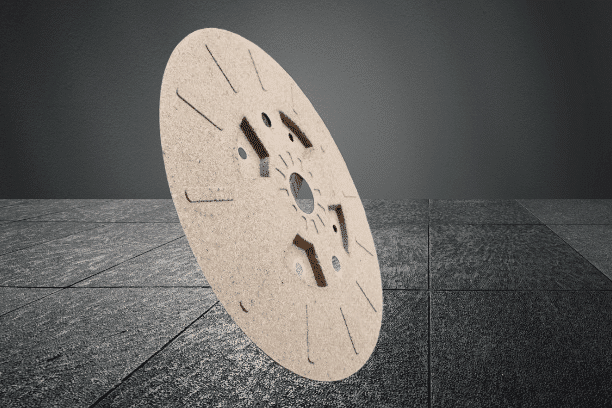

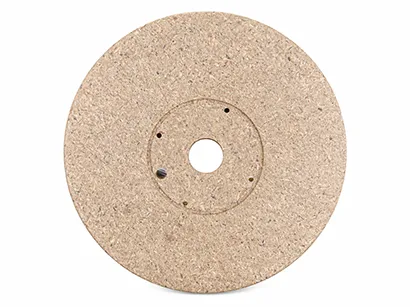

A molded industrial cable reel manufactured by compressing wood fibers under high pressure and high temperature using precision hydraulic molds.
Main Components
Available Reel Diameters
Precision segmented neck sections connect seamlessly with high-tensile fasteners to match any custom barrel width.
ZK-MWR Molded Wooden Cable Reel Specifications
Standard dimensional parameters, weights, and application guidelines for standard product lines.
| Model | Flange Outer Ø (mm) | Overall Width W (mm) | Barrel Outer Ø (mm) | Center Hole Ø (mm) | Flange Thickness (mm) | Flange Weight (kg) | Barrel Weight (kg) | Estimated Weight (kg) | Application |
|---|---|---|---|---|---|---|---|---|---|
| ZK-MWR600 | 600 | 350 | 300 | 60 | 22.5 | 12.0 | 3.9 | 15.9 | Wires / Small Cables |
| ZK-MWR800 | 800 | 450 | 400 | 80 | 25.0 | 23.6 | 6.9 | 30.5 | Power / Comm. Cables |
| ZK-MWR1000 | 1000 | 550 | 500 | 100 | 27.5 | 40.6 | 10.7 | 51.4 | Medium Industrial Cables |
| ZK-MWR1200 | 1200 | 650 | 600 | 120 | 30.0 | 63.8 | 15.5 | 79.3 | Heavy Power Cables |
| ZK-MWR1400 | 1400 | 750 | 700 | 150 | 32.5 | 94.0 | 21.0 | 115.0 | Heavy Power / High Voltage |
| ZK-MWR1600 | 1600 | 850 | 800 | 150 | 35.0 | 132.5 | 27.4 | 159.9 | Extra-Large Infrastructure Drums |
Flexible & Abundant Raw Materials
Utilize 100% locally available agricultural fiber and wood processing residues to minimize raw material costs.
Wood & Forestry Waste
- Sawdust
- Wood Chips
- Wood Shavings
- Wood Flakes
- Waste Pallets
- Plywood Scraps
- Furniture Offcuts
Agricultural Biomass
- Rice Husk
- Coconut Coir
- Palm Fiber
- Bamboo Residues
- Sugar Cane Bagasse
- Hemp Stalks
- Cotton Stalks
Standardized Compression Molding Workflow
From initial waste material crushing to precision hot-pressing and final automated assembly.
Crushing
Waste biomass processed into controlled fiber sizes.
Drying
Moisture strictly regulated to optimal 8%–12%.
Glue Mixing
Even distribution with eco-friendly UF, MUF, or MDI.
Hot Molding
High-tonnage hydraulic forming under heat & pressure.
Assembly
Modular flanges & barrels securely locked via bolts.
Compressed Wood vs Conventional Cable Reels
Direct performance and cost analysis highlighting why cable makers are upgrading to molded technology.

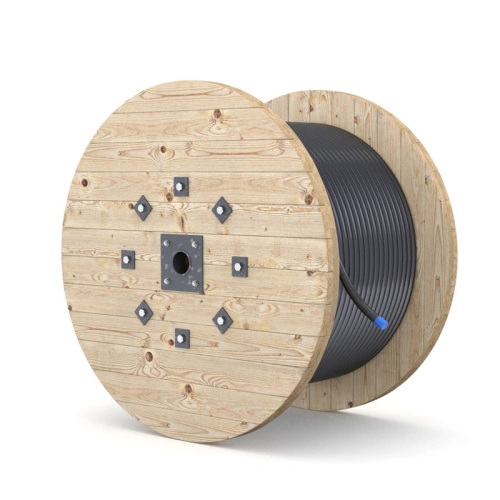

| Key Parameter | ZK Compressed Wood Cable Reel | Traditional Solid Wood / Plywood Reel |
|---|---|---|
| Raw Material Sourcing | 100% Recycled Biomass (Sawdust, agro-waste) | Virgin Lumber / Standard Plywood Sheets |
| Raw Material Cost | 30% – 70% Lower Cost than virgin timber | High cost, volatile lumber pricing |
| Export Compliance | ISPM-15 Exempt (High heat molding kills pests) | Requires chemical fumigation or heat certification |
| Dimensional Precision | CNC Mold Consistency (No warping, no shrinkage) | Natural defects, knots, uneven moisture shrinkage |
| Structural Strength | High-density cross-linked structure | Risk of splitting along wood grain lines |
| Assembly & Storage | Detachable / Flat-pack shipping reduces freight | Bulky pre-assembled volumes, expensive transport |
Engineered for Versatile Winding Needs
Compatible with standard industrial take-up equipment and packaging lines across multiple sectors.
Power & Telecom Transmission
- Low & Medium Voltage Cables
- Overhead Distribution Conductors
- Optical Ground Wires (OPGW)
- Fiber Optic Communication Lines
- Submarine & Underwater Cables
- Building Wires & Harnesses
Industrial & Heavy Hardware
- Elevator & Crane Steel Wire Ropes
- Gas Shielded Welding Wire
- Industrial Hydraulic Hose Lines
- High-Tensile Marine Tow Ropes
- Precision Alloy Strip Packaging
- Agricultural Drip Irrigation Tubing
ZK-1600 High-Precision Hydraulic Press Machine for Wood Cable Reels
Specifically calibrated for compression molding large-format cable reel flanges up to 1600 mm. Designed with high-rigidity structural platens to guarantee balanced pressure distribution and maximum core density.
- Platen Capability: Supports reel diameters up to Ø 1600 mm
- Frame Architecture: Heavy-duty prestressed 4-column structure
- Automation: SIEMENS PLC + touch screen intuitive recipe management
- Thermal Efficiency: Multi-zone intelligent oil/steam heating control
Complete Turnkey Plant Layout
ZK provides end-to-end machinery, factory engineering, and automated transfer configurations.
Biomass Preparation
Converts bulk wood & stalks into fine, consistent fibers.
- Heavy-Duty Wood Crusher
- Refining Hammer Mill
- Triple-Pass Rotary Drum Dryer
Dosing & Blending
Ensures high resin coverage with lowest binder consumption.
- Continuous Mechanical Glue Mixer
- Loss-in-Weight Batch Feeder
- Automated Fiber Conveying Line
Molding & Assembly
High-temperature compression and bolt-lock fastening.
- ZK-Series Hydraulic Hot Presses
- Custom Precision Reel Molds
- Dedicated Drum Assembly Rig
Why Partner with ZK Hydraulic?
Over two decades of hydraulic press innovation supporting turn-key projects worldwide.
Years Industrial Experience
Decades of specialized hydraulic manufacturing and presswood tooling expertise.
In-House Tooling & Design
Dedicated mold design department tailoring flange shapes, ribs, and thickness to your specs.
Plant Engineering Support
From initial raw fiber testing and plant CAD layout to equipment sizing and civil guidance.
Field Commissioning
Technical dispatch engineers provide hands-on overseas installation, testing, and operator training.
Start Your Compressed Wood Cable Reel Project Today
Looking for an economical turnkey solution? Contact our engineering team for sample testing, customized line proposals, and detailed factory ROI calculations.
