Pallet Block Machine
Introduction:
The wood chips pallet block machine is a specialized piece of equipment that compresses wood chips or sawdust into sturdy, uniform blocks for use in pallet construction. It offers an efficient, eco-friendly solution by recycling wood waste into durable, high-quality pallet components.
Euro Pallet Blocks and Special Size:
145x100mm, 95x95mm, 160x95mm,145x145mm,78x78mm...
Output Capacity:
From 1 m³/day to 7 m³/day according to block sizes
Pallet Block Machine Models
Single Head Pallet Block Machine
Compact pallet block machine for small to medium production. It supports 160mm x 160mm maximum block size and can be equipped with automatic cutting.
- Max Size160mm x 160mm
- CuttingOptional Auto Saw
HOT SALE

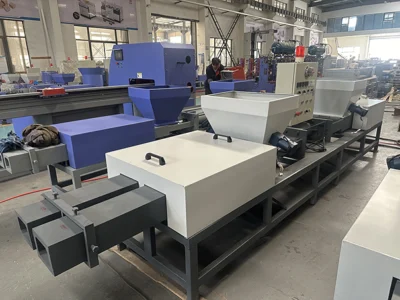

Double Head Pallet Block Machine
High-efficiency model for stable pallet block production. It supports 100mm x 145mm maximum block size with optional automatic cutting saw.
- Max Size100mm x 145mm
- CuttingOptional Auto Saw

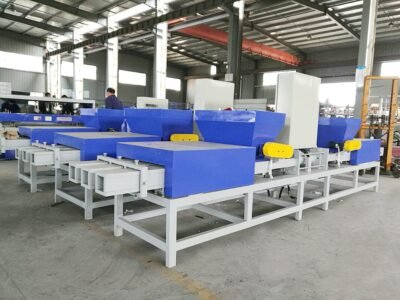

Triple Heads Pallet Block Machine
Large-capacity pallet block machine for continuous production. It supports 100mm x 145mm maximum block size and optional manual cutting saw.
- Max Size100mm x 145mm
- CuttingManual Saw Optional
Pallet Block Machine Parameters
| Model | WM-D2 | WM-D4 | WM-D6 |
|---|---|---|---|
| Power | 18 kW | 23.5 kW | 28.5 kW |
| Density | 500-600 kg/m³ | 500-600 kg/m³ | 500-600 kg/m³ |
| Size | 75*75 - 145*145mm | 75*75 - 145*145mm | 75*75 - 100*100mm |
| Capacity | 1.4 - 5.4 m³/24h | 2.9 - 10.8 m³/24h | 4.3 - 7.7 m³/24h |
| Weight | 900 kg | 1500 kg | 2000 kg |
| Dimension | 5000*500*1300mm | 5000*700*1300mm | 5000*900*1300mm |
| Pressure | 3-5 Mpa | 3-5 Mpa | 3-5 Mpa |
| Voltage | Customization | Customization | Customization |

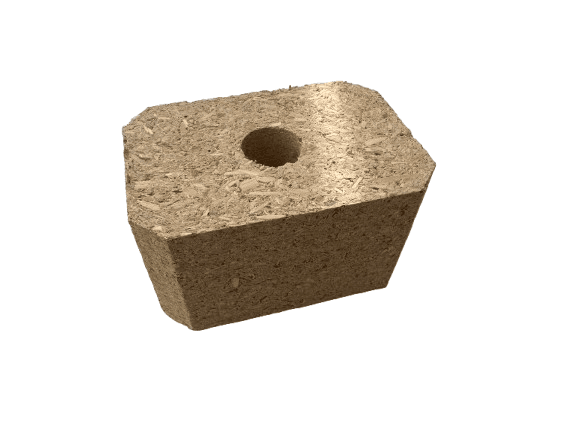

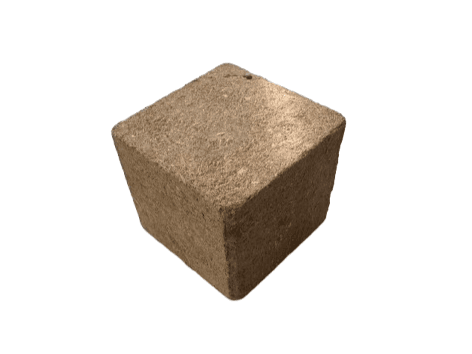

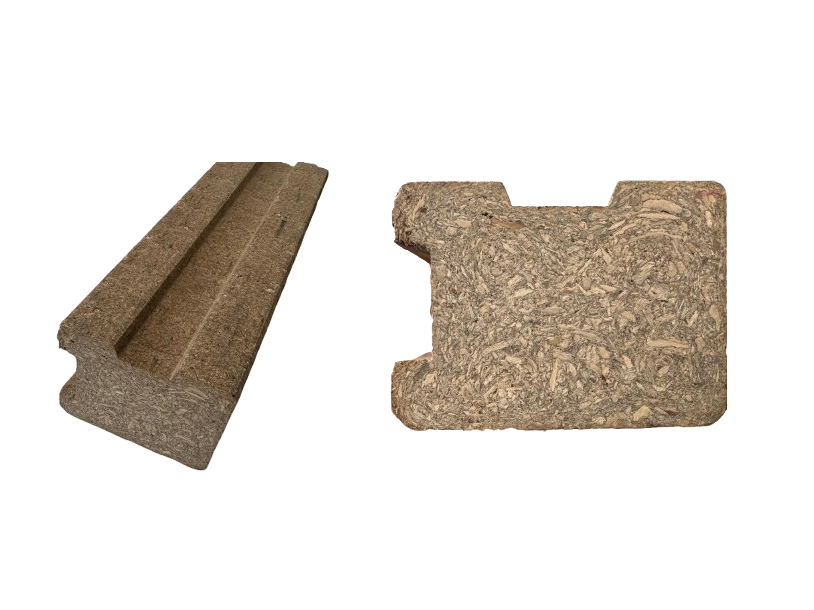

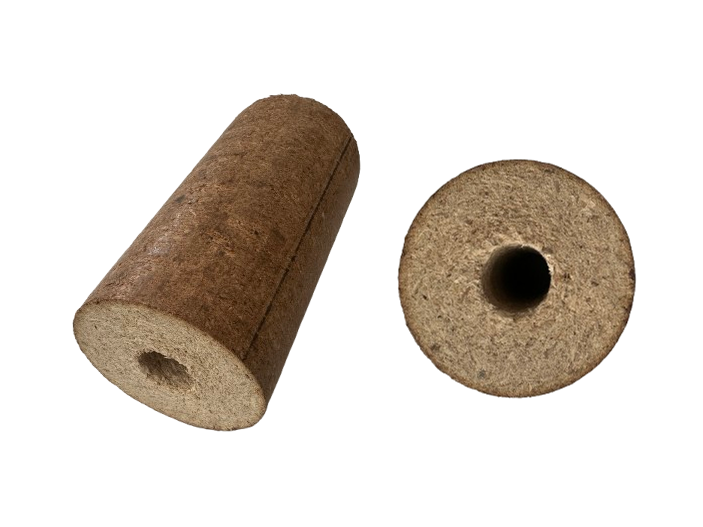

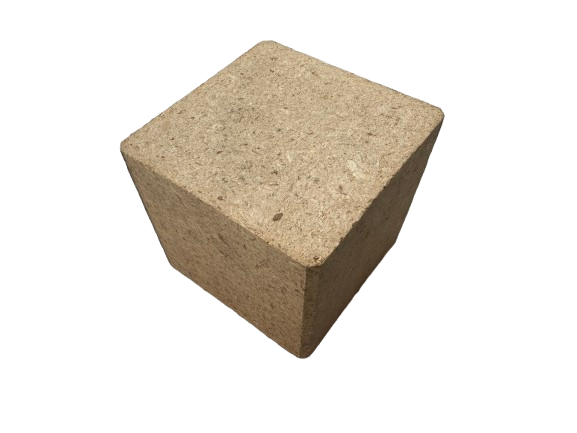

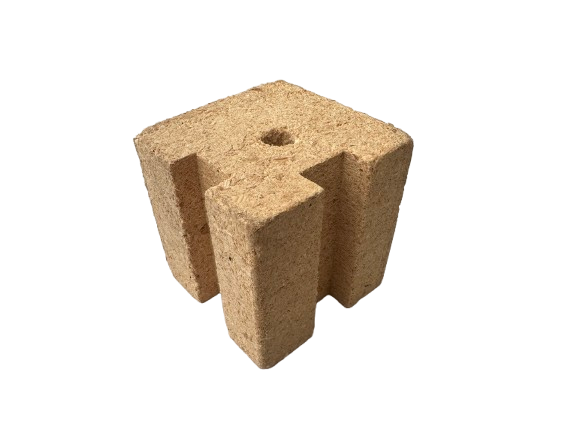

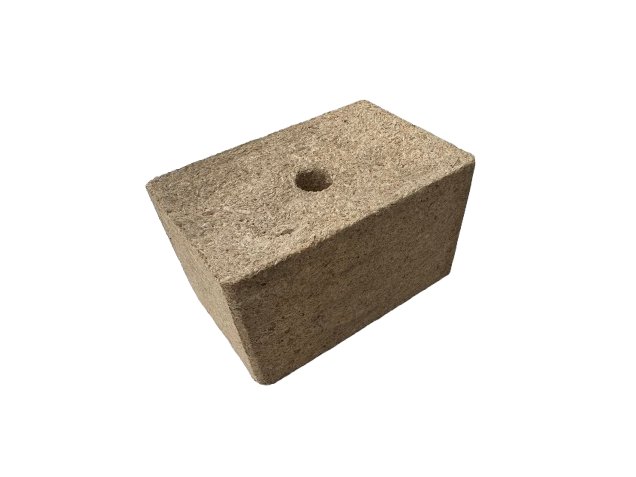

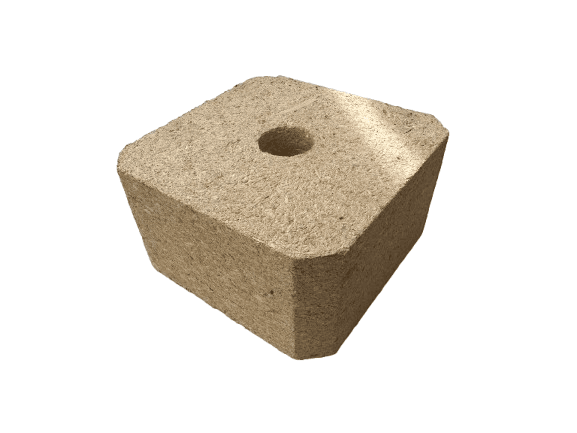

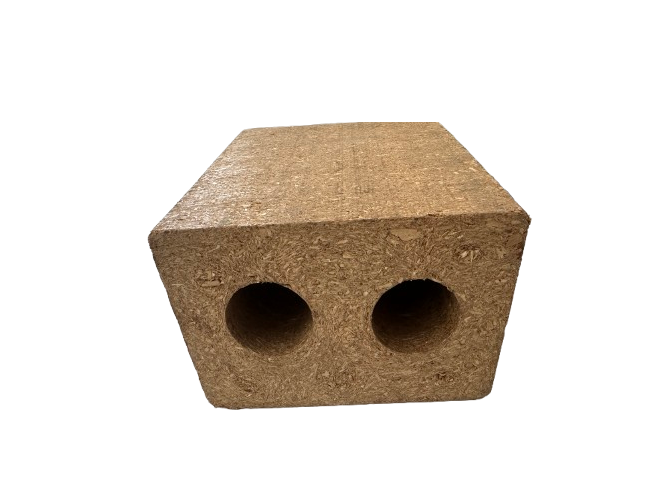

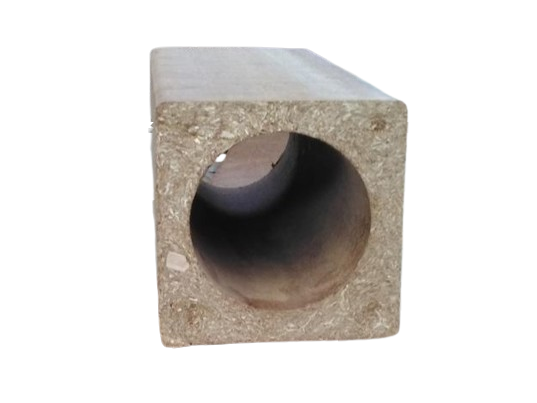

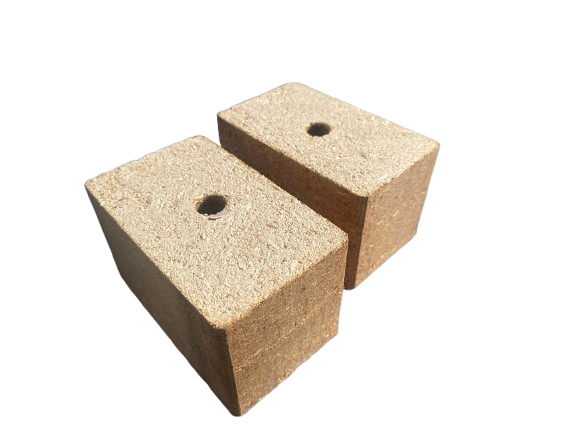

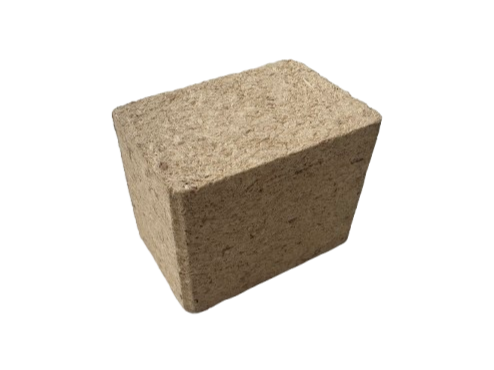

Euro Pallet Wood Chips Blocks
The wooden blocks produced by this equipment have a smooth surface, a moderate density, and possess high nail-holding power and waterproof performance. The density of the wooden blocks can be adjusted according to the customers' needs and production situations, and the operation is simple.
Read more
Euro Pallet Block Production Line Process Flow Chart
The Production Process of The Pallet Block Production Line
Raw Material Collection
Raw materials such as waste wood, sawdust, and wood chips are collected from sawmills and furniture factories. Contaminants like nails and plastics are removed for quality control.
Crushing & Grinding
Wood materials are processed through a wood crusher and hammer mill to achieve uniform particle size, essential for durable presswood pallet blocks.
Drying
The wood sawdust is dried to 8-12% moisture content using rotary or belt dryers, ensuring optimal bonding and preventing warping.
Adhesive Mixing
Dried wood particles are mixed with UF and MUF, enhancing strength and durability. Additives may be included for waterproof properties. UF/MUF glue ratio 13-15%.
Compression Molding
The mixture is molded in a hydraulic press at 150-200°C under high pressure, forming compressed pallet blocks with high strength.
Cooling & Cutting
After cooling, blocks are cut into standard sizes like 90×90 mm, 100×100 mm, or 145×145 mm as per customer requirements.
Quality Inspection
Each batch undergoes moisture, density, and strength testing. Non-compliant blocks are rejected or reprocessed.
Packaging & Storage
Finished blocks are bundled, wrapped in plastic film, and stored in dry, ventilated areas to maintain quality.
Delivery & Application
These eco-friendly pallet blocks are used in molded pallet production, providing a strong, uniform, and pest-resistant alternative to solid wood blocks.
