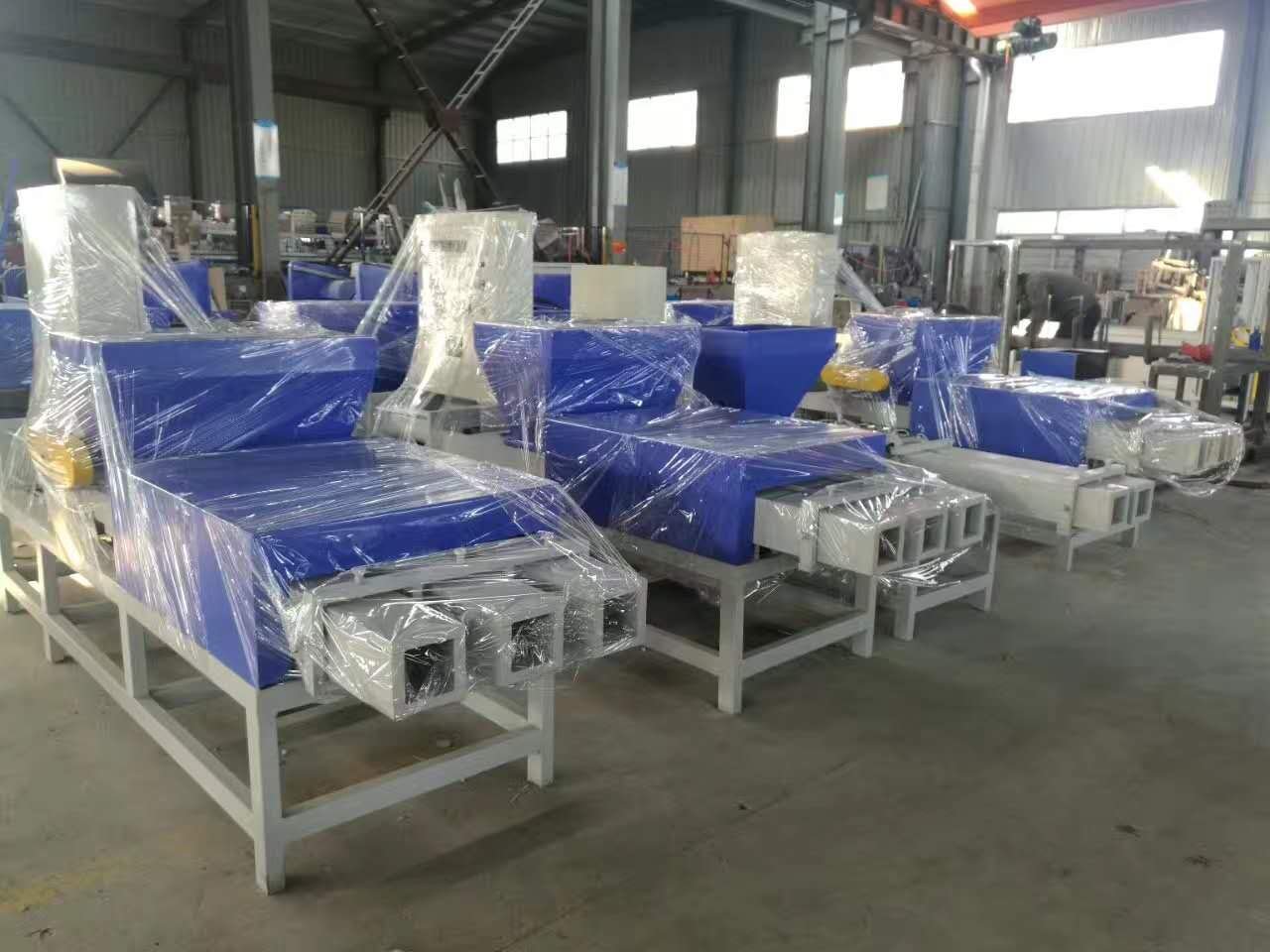

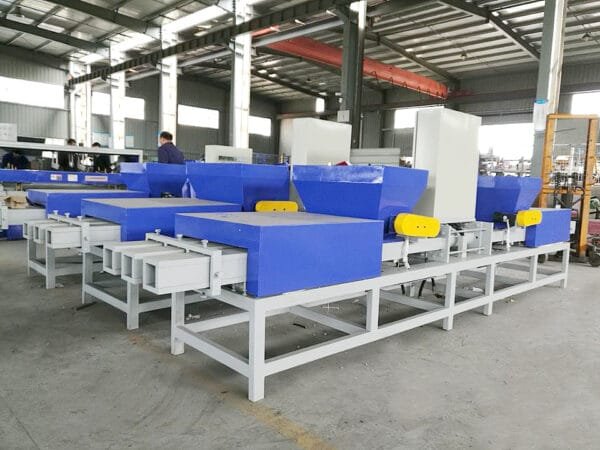

Triple Heads Euro Pallet Block Machine for Small Scale Factory

Wood Chips Pallet Block Machine – High-Efficiency & Eco-Friendly Solution for Pallet Manufacturing

The wood chips pallet block machine, also known as a compressed wood pallet block machine or sawdust pallet block press machine, is a specialized piece of equipment designed to compress wood chips, sawdust, and other wood waste into strong, uniform pallet blocks. These blocks are widely used as pallet feet (pallet legs) in compressed wood pallets, offering a cost-effective and sustainable alternative to traditional solid wood blocks.

Why Choose a wood chips Block Machine?

The compressed wood chips block making machine is ideal for businesses looking to:
✔ Increase pallet production efficiency
✔ Reduce raw material costs through wood waste recycling
✔ Produce high-quality pallet blocks that meet industry standards
✔ Invest in an environmentally friendly pallet manufacturing solution

Key Features of the Wood chips Block Machine:

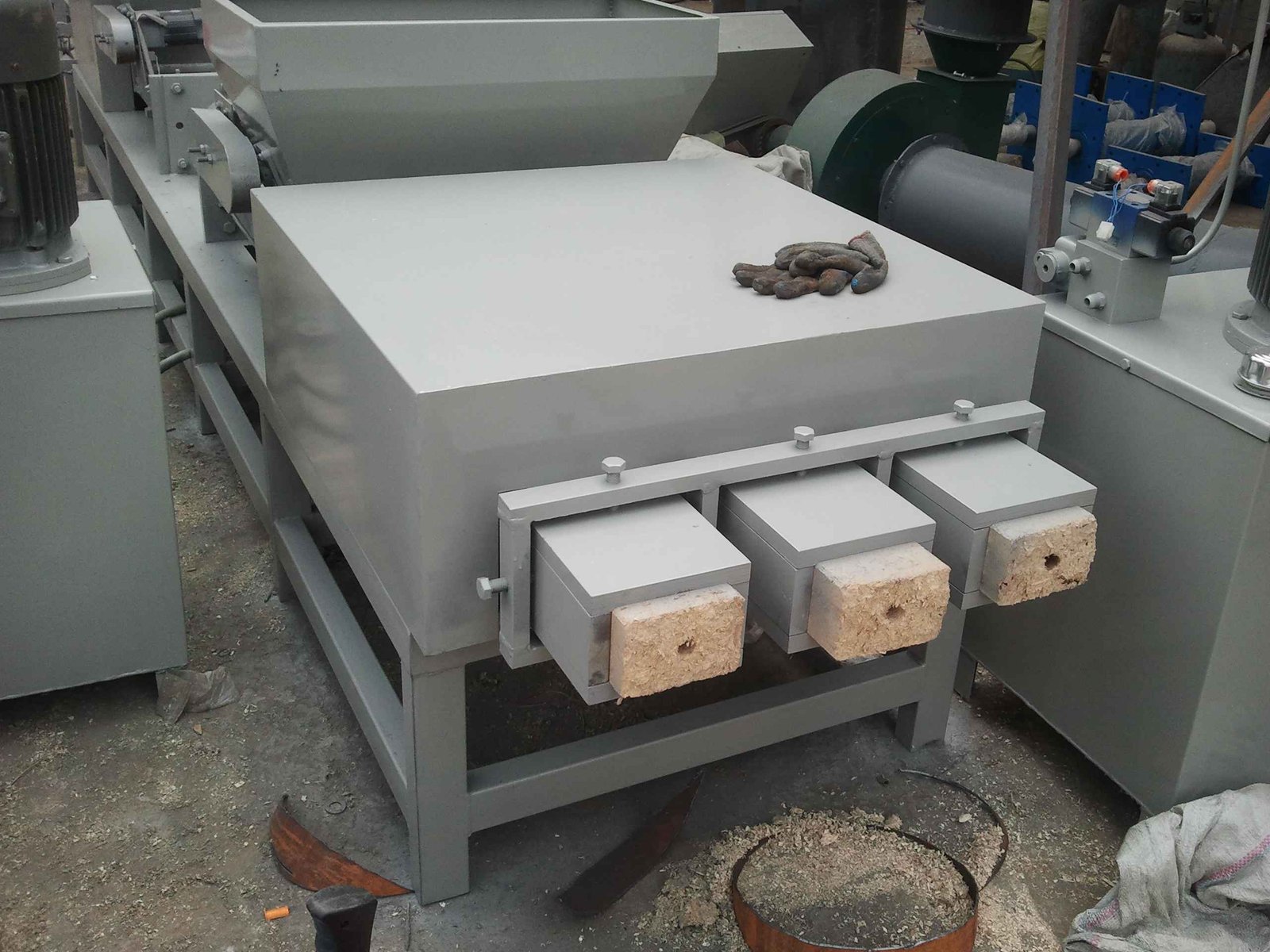

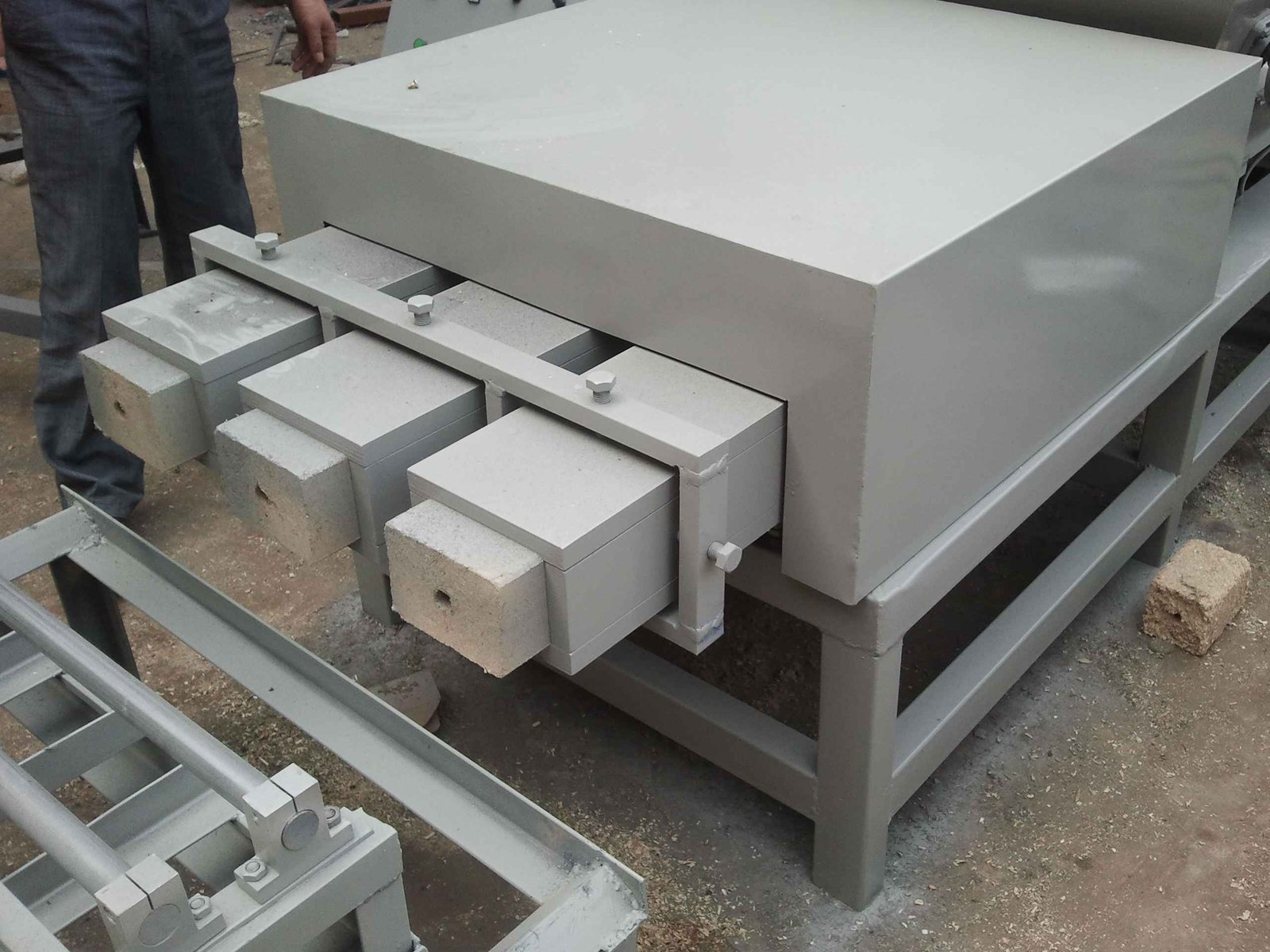

  • High-Efficiency Triple-Outlet Design – The machine features two ends, each with three outlets, increasing production capacity. The maximum outlet size is 100mm × 100mm, ensuring uniform, sturdy pallet blocks.
  • Manual Cutting Saw Equipped – A manual cutting system ensures precise block sizing and smooth operation.
  • Simple Structure & User-Friendly Operation – Designed for easy operation, this automatic wood chips block extruder machine requires minimal worker training, making it ideal for high-volume pallet production.
  • Low Maintenance & Durable Performance – Routine maintenance includes surface cleaning, lubrication, and regular inspections, ensuring long service life and stable operation.
  • Eco-Friendly & Sustainable Solution – The machine supports wood waste recycling, transforming wood chips and sawdust into reusable pallet components, reducing waste and promoting sustainability in pallet manufacturing.

Operation Type: PLC and Manual

Block size: 75x75mm to 145x100mm

Block Density: 550kg-800Kg

Glue consumption: 83-98kg/m³

Capacity: 3.8-7.8m³/24h

Power: 23.5 Kw

Voltage: 380V 50Hz 3P (Customized)

Dimension: 5000*1200*1500mm

Block Trimmer: Manual Operation

LED Screen: have

Warning light: have

Operation Type: PLC and Manual

PLC Brand: SIEMENS

Electronic Parts: SIEMENS and Schneider

Motor Brand: Local

Mould: 45# steel chrome-plated

Mould Dimension: Thickened, lengthening

Hopper: Round or Special design

Hydraulic Cylinder: Double-Hydraulic Cylinder Dia. 125mm

Equipped with: Alarm, Touch screen, pressure meter, Hydraulic pump station

Packing: Film

Certification: CE

Rapid installation: 1 hour

euro pallet pressed sawdust wood blocks size 95X160 mm
Special type Extruded Sawdust Profile
Special type Extruded Profile
euro pallet pressed sawdust wood blocks size 135 x 90 mm
euro pallet pressed sawdust wood blocks size 78x95mm
euro pallet pressed sawdust wood blocks size 90x90mm
