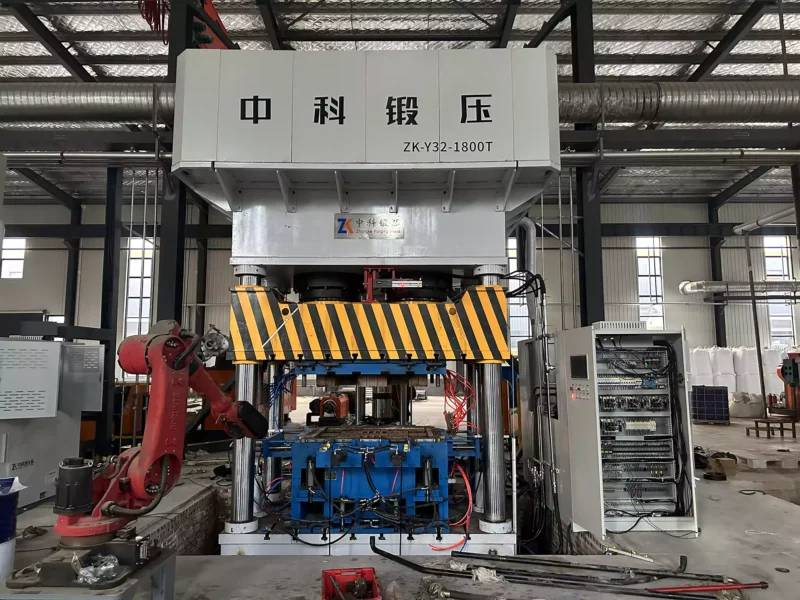

Recycled Plastic Pallet Press Machine 1800 tons

The 1800-Ton Plastic Compression Molding Machine is a high-efficiency solution engineered for manufacturing high-density plastic pallets and molded components. Featuring a heavy-duty four-column frame, precision hydraulic drive, and an automated PLC/Servo control system (Siemens/Omron), it delivers up to 18–25 pieces per hour with exceptional pressure accuracy. Optimized for recycled plastics and composite materials, this machine combines energy efficiency, fast cycle times, and robust durability for modern industrial manufacturing.

Key Features:

Dual/Hydraulic Cylinder Drive: Powered by high-performance hydraulic cylinders to deliver a stable combined pressure of 1800 tons. This ensures high-precision molding and uniform density distribution for medium-to-large plastic pallets and compression-molded components.
Optimized Working Dimensions: Equipped with a spacious working table (approx. $2500\text{ mm} \times 1500\text{ mm}$ , accommodating standard and specialized molds for versatile industrial plastic products.
Versatile Plastic & Composite Processing: Specifically optimized for processing thermoplastics, recycled plastics, composite materials, and SMC/BMC formulations, supporting eco-friendly and sustainable manufacturing.
Robust Frame Construction: Built with a heavy-duty three-beam, four-column frame using high-tensile Q235A steel and $45\#$ steel columns. This guarantees minimal deflection, long-term durability, and exceptional operational stability under high pressure.
Advanced Automation & Controls: Features top-tier global components, including Schneider electrical parts, an SIEMENS PLC control system, a Inovance energy-saving servo motor, and a WEINTEK/SIEMENS intuitive touch screen for precise parameter setup and dynamic monitoring.
Customizable Mold System: Supports upper and bottom heating/molding configurations with custom logo engraving capabilities for branding and product differentiation.

Key Advantages:

High Production Efficiency: Reaches an output capacity of 18 to 25 molded pallets per hour (depending on material cycle time), significantly boosting manufacturing productivity.
Energy Efficiency & Precision: Integrated servo hydraulic system reduces energy consumption by up to $30\%\text{--}50\%$ compared to traditional hydraulic systems while ensuring accurate pressure and temperature management.
User-Friendly Operation: The intuitive PLC and touch-screen interface lower the learning curve for operators and allow quick adjustments of pressure holding times and cycle speeds.
Sustainable Manufacturing: Maximizes the use of post-consumer and recycled plastics, aligning with modern green production standards.

Model: ZK-1800

Applicable Raw Material: Wood Waste/Wood Chips/Others

Max Pallet Size: 1500x1300mm

Pallet Weight: 20-25 kg

Pallet Type: Nine Feet Type

Output Capacity: 15-20 pcs/h

Frame Structure: Three-beam and four columns

Material: Frame-steel Q235A; Column-steel 45#

Cylinder Stroke: Hydraulic

Pressure: 1800T

Slide Stroke: 150mm

Max Opening Height: 1700mm

Working Table: 2200×1900mm

Mold: 1 up mold & 1 bottom mold

Logo Engraving: Support

Safety Light Curtains: ReeR (Italy)

Hydraulic Oil Cooler: Have

Hydraulic Pump: Sumitomo （Japan）

Machine Weight: 58T

Machine Dimension: 4700×2645×5700mm

Electronic Brand: Schneider

PLC Brand: OMRON or SIEMENS

Servo Motor: Inovance

Touch Screen Brand: WEINTEK/SIEMENS

Safety Light Curtain: Have

Hydraulic Cooling System: Have

CE Certification: Have

Total Power: 45Kw
