The global push toward sustainable packaging and the circular economy is driving manufacturers to explore innovative raw materials for pallet production. At ZK Hydraulic, continuous R&D and material processing trials remain at the heart of our mission to deliver high-performance plastic pallet molding machines and high-precision pallet molds.

Yesterday, the engineering team at ZK Hydraulic completed a milestone testing program focused on compression molding recycled plastics. This comprehensive trial proved the viability, stability, and commercial promise of combining recycled polypropylene (PP) with calcium carbonate ($CaCO_3$), plastic compatibilizers, PET short fibers, and emulsifiers/processing aids.

Three Comparative Molding Experiments on the ZK-1800 Press

All trials were conducted via manual feeding using the ZK-1800 hydraulic plastic pallet compression molding machine, maintaining an identical holding pressure time of approximately 50 seconds.

1. Experiment 1: Paper Mill Waste Plastics

• Process & Demolding: The paper mill waste plastic successfully achieved full molding cavity filling and smooth demolding.
• Performance: The resulting pallet delivered a static load capacity of approximately 1 ton.
• Takeaway: While feasible for standard light-to-medium utility applications, post-industrial waste plastics require precise temperature and tonnage control to maximize structural consistency.

2. Experiment 2: Pure Recycled Polypropylene (PP)

• Process & Demolding: The raw recycled PP pellets/flakes achieved complete mold filling under 1800 tons of clamping force. However, during the demolding stage, noticeable mold sticking occurred due to plastic shrinkage rates and thermal adhesion properties.
• Performance: Compared to paper mill waste, the pallet exhibited a substantial leap in both tensile toughness and impact strength.
• Takeaway: High-purity recycled PP provides exceptional mechanical strength, but mold design and process parameters must address mold adhesion to ensure efficient, automated cycling.

3. Experiment 3: The Optimized Composite Formulation (PP + $CaCO_3$ + Compatibilizer + PET Short Fibers + Emulsifier)

• Process & Demolding: By blending recycled PP with calcium carbonate powder, high-efficiency compatibilizers, reinforcing PET short cut fibers, and emulsifying aids in balanced proportions, the molten composite filled the mold seamlessly and demolded smoothly without any sticking or surface tearing.

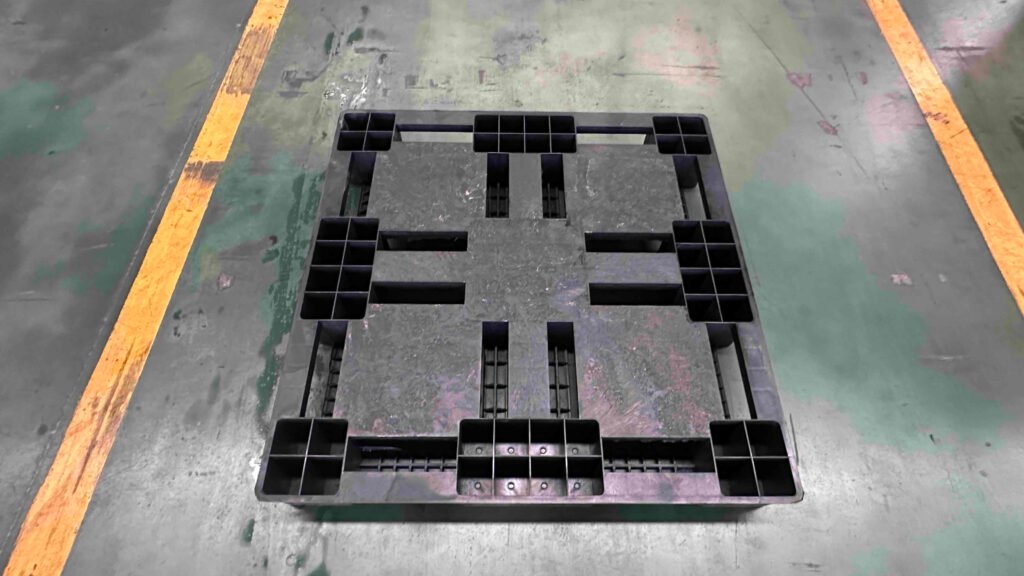

• Performance: Due to the mineral filler addition, the finished pallet weight was 2–3 kg heavier than the previous trials. Most importantly, it achieved superior rigidity, excellent structural toughness, and outstanding dimensional stability.
• Takeaway: The synergy of PET fiber reinforcement and mineral modification completely resolves the demolding bottleneck while elevating load capacity and structural integrity to industrial-grade standards.

Engineering Better Presses and Precision Molds Through Material Science

A successful molded pallet production line requires more than just raw clamping force—it demands deep synergy between polymer rheology, temperature regulation, mold cavity venting, and hydraulic dynamics.

By conducting rigorous on-site formulation trials, ZK Hydraulic gains direct empirical data on:

• Thermal Shrinkage & Thermal Release: Refining cavity draft angles and automated ejector pin systems in custom pallet molds to prevent mold sticking.
• Reinforced Fiber Distribution: Ensuring hydraulic pressure distribution prevents fiber shearing while maximizing mechanical tensile strength across pallet ribs and corners.
• Energy-Efficient Cycles: Keeping pressure holding times around 50 seconds to optimize cycle times for mass manufacturing facilities.

Whether processing agricultural fibers, post-consumer films, or complex post-industrial plastics, ZK Hydraulic’s engineering team adapts machine parameters and mold geometry directly to the client’s local raw materials.

Upgrade Your Pallet Manufacturing with ZK Hydraulic

Looking to turn recycled plastic flakes, mixed polymer scrap, or municipal waste into high-value logistics pallets?

Discover the Recycled Plastic Pallet Press Machine (Model ZK-1800). Engineered with heavy-duty pre-stressed frame structures, proportional hydraulic control, and multi-zone intelligent heating platens, ZK Hydraulic provides turnkey solutions spanning raw material crushing, blending, extrusion, compression molding, and automated robotic handling.

Explore more technical insights on our plastic recycling for pallet production guide or review our latest dual 1800-ton plastic compression molding project to learn how ZK Hydraulic can support your production line.
